PTX5072-TB-A2-CB-H1-PA
1.Overview
Series PCM300 pressure transmitter is kind of device based on pressure layer
which inside expert integrate circuit can transform sensor milli-volt signar tw stanaard far distance transmission current signal. and it can be directly ioined with computer jont cup, control
instrument ,aptitude instrument or PLC etc. convenientlv.The series' proauct is applied extensively in the professions, such as the industry process control. petroleum. chemical engineering and metallurgs etc. Carry the distance delivers and can adopt electric current exportation method
The seriesesPCM300s have tne physical volume small, the weight is lignt, the whole stainless steel seals completely the structure, can work in the causticity environment. That product installs the
convenience simple and direct, have the very high anti- to flap to pound at the tunction with anti-,be apply in the process to control extensively, aviation, aerospace,automobile, medical treatmen
equipments. HVAC etc. realm
2.Shape dimension and installatior

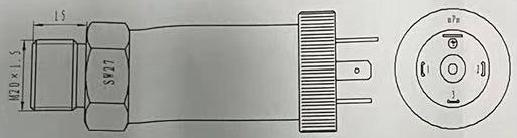

Figure l is the shape for the Hirschmann contac

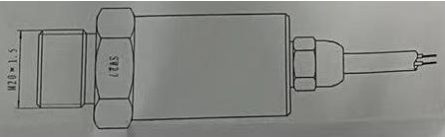

Figure 2 is a direct fuse shape
3 Technique index sign
Power: 24 VDC
Output: 4～20mA
Accuracy: 0.5% F.S:
4.Electric Connection
4.1 The Hirschmann structure electricity conjunction is as follows the diagram a,b:
4.2 Direct fuse structure electricity conjunction
口 Electric current
Red line: 24 VDC
Green line: The electric current output
Electric voltage
Red line Blue line:
Yellow line:
24 VDC
Power supply-;
The electric voltage output+
5 、Installation method
(1) Chose the place where can operate and vindicate easily to install
(2)Keep away from vibration source as far as possible
(3)Keep away from hot source as far as possible
(4)Had better pass the valve door and measure the piping conjunctior
(5) Use wrench to clamp the six square of transmitter when installed
(6)Operate the Hirschmann deal with contact and link the place and
can't turn to move with the outer shell
6 、Safety usage notice
(1) Be careful when the transmitter is carried and installed, so that can avoid the collision to influence the function of the circuit
(2)Change to send to the machine to enter to press there is the insulation film slice in, absolutely not to artificial touch to touch with the foreign body
(3)The electricity conjunction please act according to strictly to connect the line method, connect the line mistake and will result in the damage of enlarge the electric circuit
(4)Please contact with our company if they have problems when installed and used. When products take place abnormality, please do not open to repair by yourself,you should contact with the factory in time
